Engine::Scheduler::AScheduler Class Reference

AScheduler is an abstract class that implements the IScheduler interface. It provides common functionalities for schedulers, such as enabling/disabling systems and error handling. It also provides a default implementation for the RunSystem function, which executes a system according to the scheduler policy. More...

#include <AScheduler.hpp>

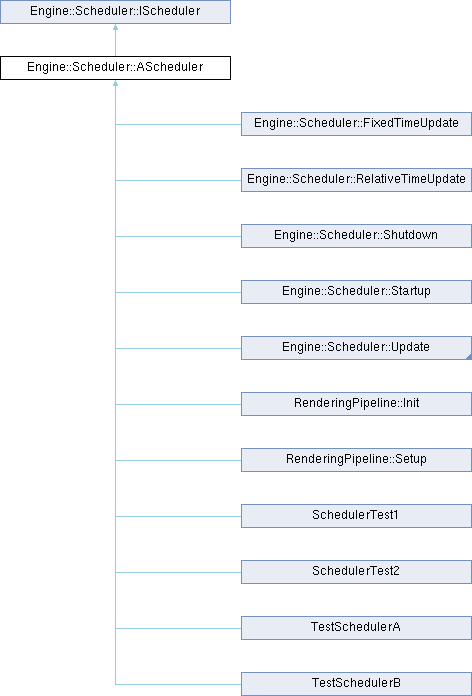

Inheritance diagram for Engine::Scheduler::AScheduler:

Public Member Functions
	AScheduler (Core &core)
	Constructor of the AScheduler class.
decltype(auto)	GetSystems ()
	Get systems inside the scheduler.
template<typename... TSystems>
decltype(auto)	AddSystems (TSystems... systems)
	Add systems to the scheduler.
void	Disable (FunctionUtils::FunctionID id)
	Disable a system.
void	Enable (FunctionUtils::FunctionID id)
	Enable a system.
void	RunSystem (const SystemBase *system, Core &core)
	Execute a system.
bool	ShouldRunNextScheduler () const
	Get whether the next scheduler should run or not. This is mainly set by the error policy of the scheduler.
SchedulerErrorPolicy	GetErrorPolicy () const override
	Get the error policy of the scheduler.
void	SetErrorPolicy (SchedulerErrorPolicy errorPolicy) override
	Set the error policy of the scheduler.
void	Remove (FunctionUtils::FunctionID id)
	Remove a system from the scheduler.
Public Member Functions inherited from Engine::Scheduler::IScheduler
virtual	~IScheduler ()=default
	Virtual destructor for IScheduler.
virtual void	RunSystems (void)=0
	Run the systems according to the scheduler policy.

Protected Attributes
Core &	_core
	Reference to the core.

Private Attributes
SystemContainer	_enabledSystemsList
	List of enabled systems in the scheduler.
SystemContainer	_disabledSystemsList
	List of disabled systems in the scheduler.
bool	_shouldRunSystems = true
	A state if the systems of the scheduler should be executed or not. If false, the scheduler will skip the execution of its systems. This is mainly used to handle the error policy of the scheduler.
bool	_shouldRunNextScheduler = true
	A state if the next scheduler should be executed or not. This is mainly used to handle the error policy of the scheduler.
SchedulerErrorPolicy	_errorPolicy = SchedulerErrorPolicy::LogAndContinue
	The error policy of the scheduler. It defines how the scheduler should handle errors that occur during the execution of its systems.

Detailed Description

AScheduler is an abstract class that implements the IScheduler interface. It provides common functionalities for schedulers, such as enabling/disabling systems and error handling. It also provides a default implementation for the RunSystem function, which executes a system according to the scheduler policy.

See also

Engine::Scheduler::IScheduler

Constructor & Destructor Documentation

AScheduler()

Engine::Scheduler::AScheduler::AScheduler ( Core & core )

inlineexplicit

Constructor of the AScheduler class.

Parameters

core	Reference to the core.

See also

Engine::Core

Member Function Documentation

AddSystems()

template<typename... TSystems>

decltype(auto) Engine::Scheduler::AScheduler::AddSystems ( TSystems... systems )

inline

Add systems to the scheduler.

Template Parameters

TSystems

Types of the systems to add.

Parameters

systems

The systems to add.

Returns

A tuple of FunctionIDs for the added systems. See FunctionUtils::FunctionContainer::AddFunctions for more details.

Todo

put the implementation in the inl file

Disable()

void Engine::Scheduler::AScheduler::Disable

(

FunctionUtils::FunctionID

id

)

Disable a system.

Parameters

id	The system to disable

Enable()

void Engine::Scheduler::AScheduler::Enable

(

FunctionUtils::FunctionID

id

)

Enable a system.

Parameters

id	The system to enable

GetErrorPolicy()

SchedulerErrorPolicy Engine::Scheduler::AScheduler::GetErrorPolicy ( ) const

inlineoverridevirtual

Get the error policy of the scheduler.

Returns

The error policy of the scheduler.

See also

Engine::Scheduler::SchedulerErrorPolicy

Todo

put the implementation in the cpp file, (remove inline)

Implements Engine::Scheduler::IScheduler.

GetSystems()

decltype(auto) Engine::Scheduler::AScheduler::GetSystems ( )

inline

Get systems inside the scheduler.

Returns

A SystemContainer with enabled systems.

See also

Engine::SystemContainer

Todo

put the implementation in the cpp file, (remove inline)

Remove()

void Engine::Scheduler::AScheduler::Remove

(

FunctionUtils::FunctionID

id

)

Remove a system from the scheduler.

Parameters

id	The system to remove.

See also

FunctionUtils::FunctionID

RunSystem()

void Engine::Scheduler::AScheduler::RunSystem	(	const SystemBase *	system,
		Core &	core )

Execute a system.

Note

The system will be executed according to the scheduler policy of the scheduler.

Parameters

system	The system to execute.
core	The core to pass to the system.

Todo

Remove Core parameter from the function and use the reference to the core stored in the AScheduler class instead.

See also

Engine::SystemBase

SetErrorPolicy()

void Engine::Scheduler::AScheduler::SetErrorPolicy ( SchedulerErrorPolicy errorPolicy )

inlineoverridevirtual

Set the error policy of the scheduler.

Parameters

errorPolicy

The error policy to set.

See also

Engine::Scheduler::SchedulerErrorPolicy

Todo

put the implementation in the cpp file, (remove inline)

Implements Engine::Scheduler::IScheduler.

ShouldRunNextScheduler()

bool Engine::Scheduler::AScheduler::ShouldRunNextScheduler ( ) const

inline

Get whether the next scheduler should run or not. This is mainly set by the error policy of the scheduler.

Returns

true if the next scheduler should run, false otherwise.

Todo

check if we can remove this method and find a cleaner way to handle the error policy of the scheduler.

put the implementation in the cpp file, (remove inline)

Member Data Documentation

_core

Core& Engine::Scheduler::AScheduler::_core

protected

Reference to the core.

Note

This reference is used to pass the core to the systems when executing them. It can also be used by the schedulers to access the core and its resources.

See also

Engine::Core

_disabledSystemsList

SystemContainer Engine::Scheduler::AScheduler::_disabledSystemsList

private

List of disabled systems in the scheduler.

_enabledSystemsList

SystemContainer Engine::Scheduler::AScheduler::_enabledSystemsList

private

List of enabled systems in the scheduler.

_errorPolicy

SchedulerErrorPolicy Engine::Scheduler::AScheduler::_errorPolicy = SchedulerErrorPolicy::LogAndContinue

private

The error policy of the scheduler. It defines how the scheduler should handle errors that occur during the execution of its systems.

_shouldRunNextScheduler

bool Engine::Scheduler::AScheduler::_shouldRunNextScheduler = true

private

A state if the next scheduler should be executed or not. This is mainly used to handle the error policy of the scheduler.

_shouldRunSystems

bool Engine::Scheduler::AScheduler::_shouldRunSystems = true

private

A state if the systems of the scheduler should be executed or not. If false, the scheduler will skip the execution of its systems. This is mainly used to handle the error policy of the scheduler.

---

The documentation for this class was generated from the following files:

• src/engine/src/scheduler/AScheduler.hpp
• src/engine/src/scheduler/AScheduler.cpp
