DefaultPipeline::Resource::GBuffer Class Reference

#include <GBuffer.hpp>

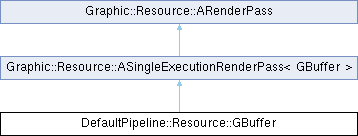

Inheritance diagram for DefaultPipeline::Resource::GBuffer:

Public Member Functions
	GBuffer (std::string_view name=GBUFFER_PASS_NAME)
	Constructs a GBuffer render pass with an optional name.
void	UniqueRenderCallback (wgpu::RenderPassEncoder &renderPass, Engine::Core &core) override
	Render all entities with GPUTransform and GPUMesh into the G-buffer using the active camera.
Public Member Functions inherited from Graphic::Resource::ASingleExecutionRenderPass< GBuffer >
	ASingleExecutionRenderPass (std::string_view name)
void	Execute (Engine::Core &core) override
Public Member Functions inherited from Graphic::Resource::ARenderPass
	ARenderPass (std::string_view name)
void	BindShader (std::string_view shaderName)
void	AddInput (uint32_t groupIndex, std::string_view bindGroupName)
void	AddOutput (uint32_t id, ColorOutput &&output)
void	AddOutput (DepthOutput &&output)
std::vector< Utils::ValidationError >	validate (Engine::Core &core) const
const auto &	GetBoundShader (void) const
const auto &	GetInputs (void) const
const auto &	GetName (void) const
const auto &	GetOutputs (void) const
auto &	GetOutputs (void)

Static Public Member Functions
static Graphic::Resource::Shader	CreateShader (Graphic::Resource::Context &graphicContext)
	Constructs and returns a shader configured for the G-buffer pass.

Constructor & Destructor Documentation

GBuffer()

DefaultPipeline::Resource::GBuffer::GBuffer ( std::string_view name = GBUFFER_PASS_NAME )

inlineexplicit

Constructs a GBuffer render pass with an optional name.

Parameters

name	Human-readable name for the render pass; defaults to GBUFFER_PASS_NAME.

Member Function Documentation

CreateShader()

Graphic::Resource::Shader DefaultPipeline::Resource::GBuffer::CreateShader ( Graphic::Resource::Context & graphicContext )

inlinestatic

Constructs and returns a shader configured for the G-buffer pass.

The shader includes vertex and fragment entry points ("vs_main", "fs_main"), bind-group layouts for camera, model, and material, a vertex buffer layout with position/normal/uv attributes, two color outputs (normal as RGBA16Float and albedo as BGRA8Unorm), and a depth output (Depth32Float).

Parameters

graphicContext

Graphics resource context used to create the shader.

Returns

Graphic::Resource::Shader A shader instance configured for the G-buffer rendering pass.

UniqueRenderCallback()

void DefaultPipeline::Resource::GBuffer::UniqueRenderCallback ( wgpu::RenderPassEncoder & renderPass, Engine::Core & core )

inlineoverridevirtual

Render all entities with GPUTransform and GPUMesh into the G-buffer using the active camera.

Binds the first available camera's bind group, then for each entity with GPUTransform and GPUMesh: binds the entity's transform and material bind groups (falls back to the default material if none), binds the vertex and index buffers, and issues an indexed draw call to populate the G-buffer outputs.

If no entity exposes a GPUCamera component, logs an error and returns without drawing.

Parameters

renderPass	The render pass encoder used to record bind-group bindings, buffer bindings, and draw commands.
core	Engine core providing access to resources and the entity registry.

Implements Graphic::Resource::ASingleExecutionRenderPass< GBuffer >.

---

The documentation for this class was generated from the following file:

• src/plugin/default-pipeline/src/resource/pass/GBuffer.hpp
